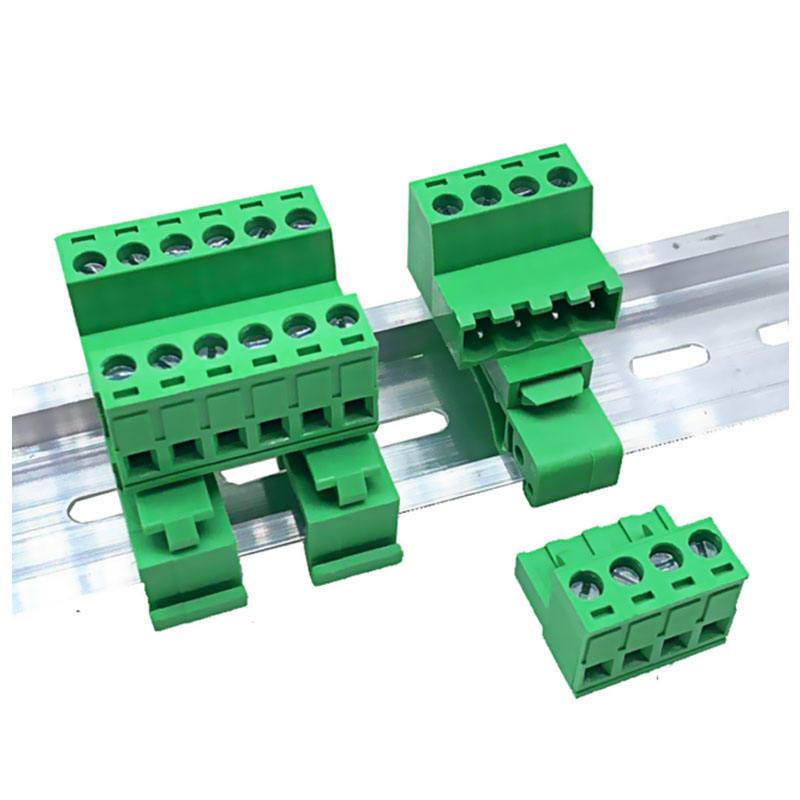

NAME:PCB Spring Terminal Block
MODEL:2EDG-VRK-5.08
Electrical:
Rated voltage: 300V
Rated current: 15A
Wire range:24-12AWG/2.5mm2
Withstanding voltage: AC2000V/1Min
Ambient temperature: -40°C~+105°C
Strip length: 10mm
Pitch：5.08mm(.200")
Poles：1P-XXP
Housing：PA66+5%GF.,UL94V-0
Pin header：Brass,Tin plated
Wire guard：Stainless steel
