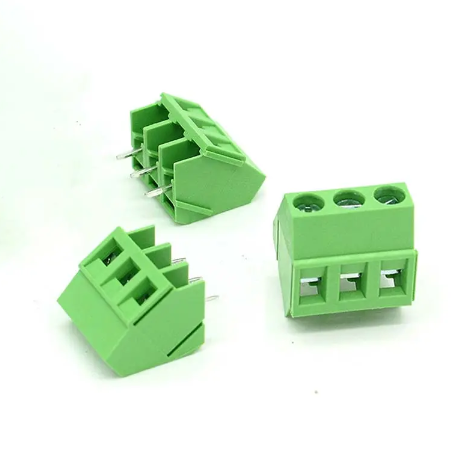

NAME:PCB Spring Terminal Block
MODEL:SU-FET2.5-XX-500-08
Electrical:
Rated voltage: 300V-250V
Rated current: 16A-24A
Wire range:24-12awg 2.5mm2
Withstanding voltage: AC2000V/1Min
Ambient temperature: -40°C~+105°C
Strip length: 10mm
Pitch:5.0mm
Poles:1P-XXP
Housing:PA66+5%GF.,UL94V-0
Pin header:Brass,Tin plated
Wire guard:Stainless steel
